Conventional Weave Belts With And Without Reinforcing Rods

Conventional Weave Belts with & without Reinforcing Rods

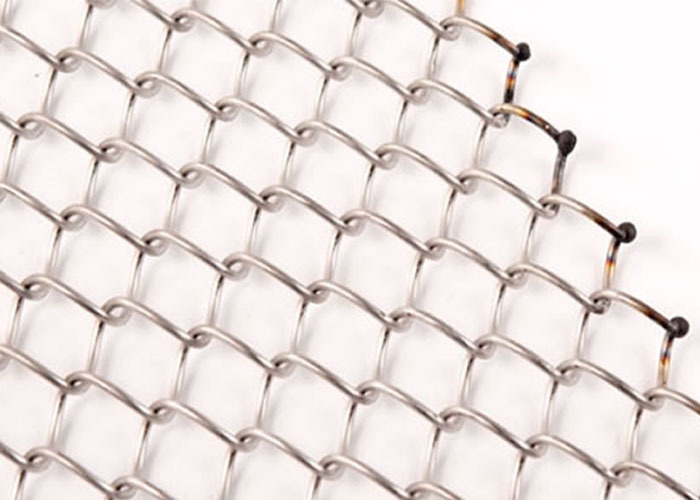

Conventional weave conveyor belt as the simplest version of universal weave conveyor belt features right and left hand round wires twisted into each other similar to a diamond mesh wire cloth. This design provides large open area to enhance the efficiency of product washing and drying process.

As your request, rod reinforced belts are available with a rod through the intersection point of the spirals for added strength as shown in the following pictures:

                 with Reinforcing Rods                                             without Reinforcing Rods

Features:

• Simple yet durable structure.
• Large open areas with greater air circulation and fluid drainage.
• Welded or bending edge.
• Ideal for conveying lightweight products.
• High tensile strength with minimal stretch.
• Excellent resistance to high temperature.
• Low thermal capacity.
• Low cost.

Applications:

• Transporting light products.
• Oven, froster and frying equipment.
• Annealing and cleaning facilities.
• Wrapping machines.
• Serving as metallic screen at lifting platforms.
• Metal working industry even at a high temperature.

Details:

• Material: carbon steel, SS 201, SS 304, SS 316.
• Belt width: 200 mm to 5,000 mm.
• Diameter of spiral round wire: 1.2 mm, 1.4 mm, 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm.
• Spiral pitch: 6 mm to 40 mm.
• Rod pitch: 5 mm to 30 mm.
• Belt opening: 1.5 mm to 25 mm.
